#Ibox 1185g7e install

Temperature range – Operating: 0✬ ~ 50✬ storage: -40° C – 85° CĪSRock iBOX 1100 mini PC officially supports Windows 10, but I’d suspect Linux should also work, and ships with a 19V/90W power adapter, a screw package, a product DVD, a VESA mounting brack, and an additional bracket to install an M.2 2280 SSD.

Power Supply – 12V-19V DC-in jack AT/ATX support (AT: power on automatically, ATX: press button to power on).

1x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.

2x USB 3.2 Gen2 Type-C ports with support for DP1.4 display output.

Gigabit Ethernet (RJ45) via Intel I219V.

2.5Gbps Ethernet (RJ45) via Intel I225LM.

Realtek ALC233 High-Definition audio codec.

2x DisplayPort 1.4 outputs via USB-C ports.

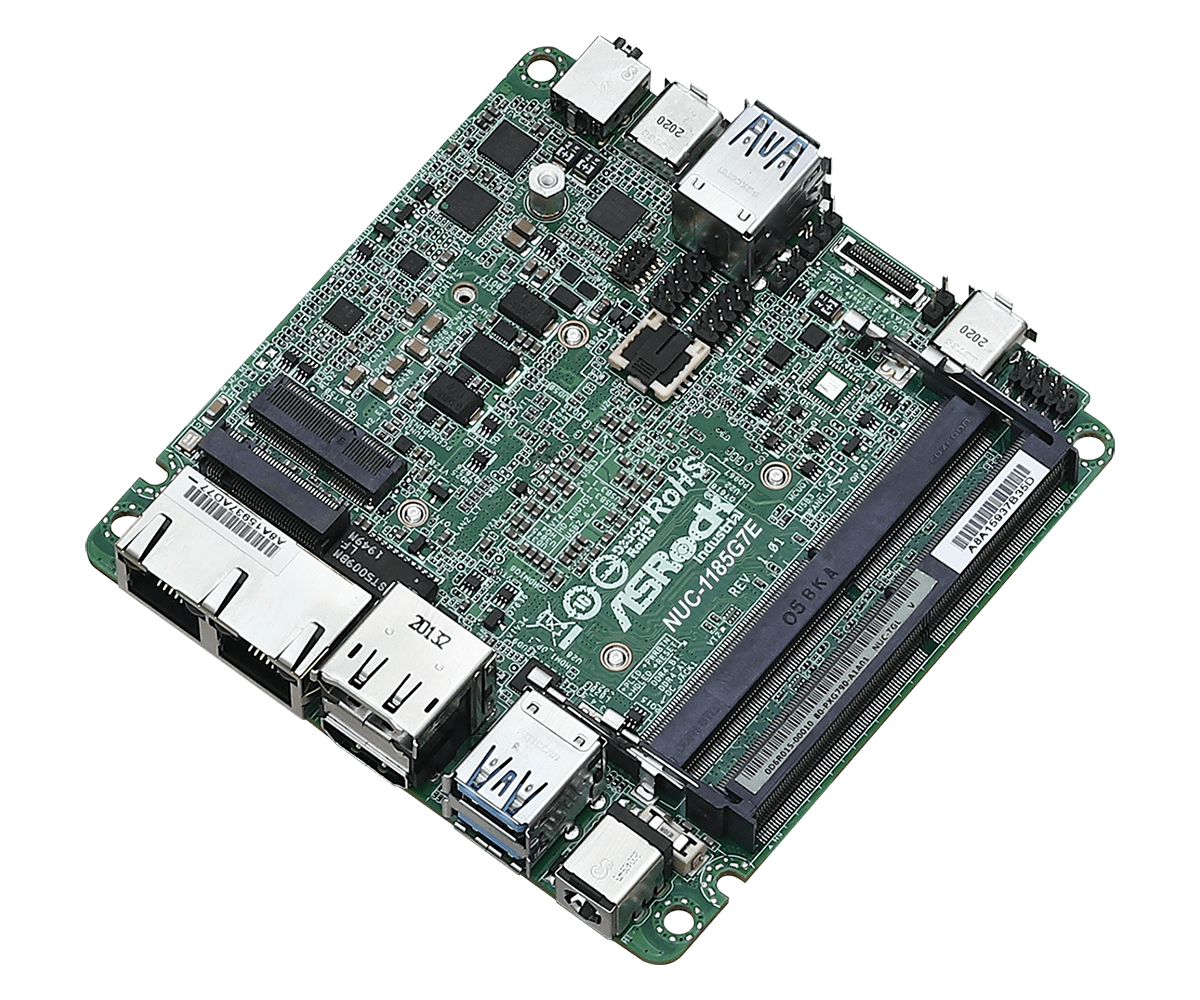

1x M.2 Key-M 2242/2260/2280 socket with PCIe x4 and SATA3 for MVMe/SATA SSD Note: M.2 Key M 2280 supported by bracket.System Memory – 2x 260-pin SO-DIMM socket for up to 64GB dual-channel DDR4 3200 MHz.Intel Core i3-1115G4E dual-core/quad-thread Tiger Lake UP3 embedded processor up to 2.2 GHz / 3.9 GHz (Turbo) with with 48EU Intel UHD Graphics 15W TDP (Configurable between 12 and 28W).Intel Core i5-1145G7E quad-core/octa-thread Tiger Lake UP3 embedded processor up to 1.5 GHz / 4.1 GHz (Turbo) with 80EU Iris Xe Graphics 15W TDP (Configurable between 12 and 28W).Intel Core i7-1185G7E quad-core/octa-thread Tiger Lake UP3 embedded processor up to 1.8 GHz / 4.4 GHz (Turbo) with 96EU Iris Xe Graphics 15W TDP (Configurable between 12 and 28W).ASRock is now the first company to officially announce a Tiger Lake UP3 mini PC based on the new 15W IoT processors.ĪSRock iBOX 1000 rugged embedded computer is fitted with the company’s NUC-1100 motherboard that offers four 4K display outputs, 2.5GbE networking, and various other expansions and I/Os in order to target factory automation, AGV, retail kiosk, digital signage, entertainment, transportation, and other AIoT applications.

We recently covered COM Express and COM-HPC modules powered by Intel Tiger Lake UP3 embedded processors announced last week.
